Specifications:
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max. Resolution | 160 × 120 (the resolution of output image is 320 × 240) |
| Pixel Interval | 25μm |
| Response Waveband | 8μm to 14μm |
| NETD | less than 50 mk (0.05°C), F#=1.0 |
| Lens (Focal Length) | 7 mm |
| MRAD | 3.57 mrad |
| Field of View | 33.9° × 25.0° (H × V) |
| Min. Focusing Distance | 0.8 m |
| Aperture | F1.0 |
| Optical Module | |
| Max. Image Resolution | 1920 × 1080 |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Min. Illumination | Color: 0.002 Lux @(F1.5,AGC ON), B/W: 0.0002 Lux @(F1.5, AGC ON) |
| Shutter Speed | 1s to 1/100,000s |
| Lens (Focal Length) | 6 mm |
| Field of View | 52.8° × 30.0°(H × V) |
| WDR | Digital WDR |
| Day & Night | IR cut filter with auto switch |
| Image Function | |
| Bi-spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| Picture in Picture | Combins details of thermal and optical image PIP, overlay thermal image on optical image |
| Smart Function | |
| VCA (Video Content Analysis) | 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules. |
| Temperature Measurement | 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line). |
| Temperature Range | -20 °C to +150 °C (-4 °F to +302°F) |
| Temperature Accuracy | ± 8 °C (± 14.4 °F) |
| Fire detection | Dynamic fire point detection, up to 10 fire points detectable. |
| Infrared | |
| IR Distance | Up to 40 m |
| IR Intensity and Angle | Automatically adjusted |
| Network | |
| Main Stream | Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) Thermal: 50fps (160 × 120 (the resolution of output image is 320 × 240)) |
| Sub Stream | Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144) Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120) Thermal: 50fps (160 × 120 (the resolution of output image is 320 × 240)) |
| Video Compression | H.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile |
| Audio Compression | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Simultaneous Live View | Up to 20 |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security Measures | User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
| Integration | |
| Alarm Input | 2-ch inputs (0-5vDC) |
| Alarm Output | 2-ch relay outputs, alarm response actions configurable |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Audio Input | 1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10% |
| Audio Output | Linear Level; Impedance: 600Ω |
| Reset | 1 Reset Button |
| Ethernet | 1 RJ45 10M/100M Self-adaptive Ethernet interface |
| SD Memory Card | Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording |
| Analog Video Output | 1.0V [p-p]/75Ω, PAL/NTSC/BNC |
| Application Programming | Open-ended API, support ISAPI, HIKVISION SDK and third-party management platform |
| Client | iVMS-4200 |
| Web Browser | IE7+, Chrome18+, Firefox5.0+, Safari5.02+ |
| General | |
| Menu language | English |
| Power | 24 VAC± 25%, 12 VDC± 20%, two-core terminal block PoE (802.3at, class 4) |
| Power Consumption | 24 VAC± 25%: 0.84 A, 12 VDC ± 20%: 1.6 A, max. 10W (20 W with De-icing Heater On), PoE (802.3at, class 4): 42.5 V to 57 V, 0.35 A to 0.47 A |
| Working Temperature/Humidity | -40 °C to 60 °C (-40 °F to 140 °F), 90% or less |
| Protection Level | IP66 Standard TVS 6000V Lightning protection, surge protection, voltage transient protection |
| Dimensions | 314 mm × 104 mm × 104 mm (12.36 ” × 4.09″ × 4.09 “) |
| Weight | Approx. 1.55Kg (3.42lb) |
Detection Range Table
* The table is only for reference, the performance may vary from camera to camera.
Smart functions Range
Different targets trigger the VCA events within different range limits.
| VCA Range (Vehicles: 1.4×4.0m) | VCA Range (Humans: 1.8×0.5m) | Temperature Measurement (Object:2×2 m) | Temperature measurement (Object:1×1 m) | Fire Detection (Object:2×2 m) | Fire Detection (Object:1×1 m) |
| 210 m | 70 m | 112 m | 56 m | 280 m | 140 m |
Wide Range Coverage
There is range limit for detecting, recognizing, and identifying human/vehicle targets.
| Detection Range (Vehicles: 1.4×4.0m) | Detection Range (Humans: 1.8×0.5m) | Recognition Range (Vehicles: 1.4×4.0m) | Recognition Range (Humans: 1.8×0.5m) | Identification Range (Vehicles: 1.4×4.0m) | Identification Range (Humans: 1.8×0.5m) |
| 429 m | 140 m | 107 m | 35 m | 53.7 m | 18 m |

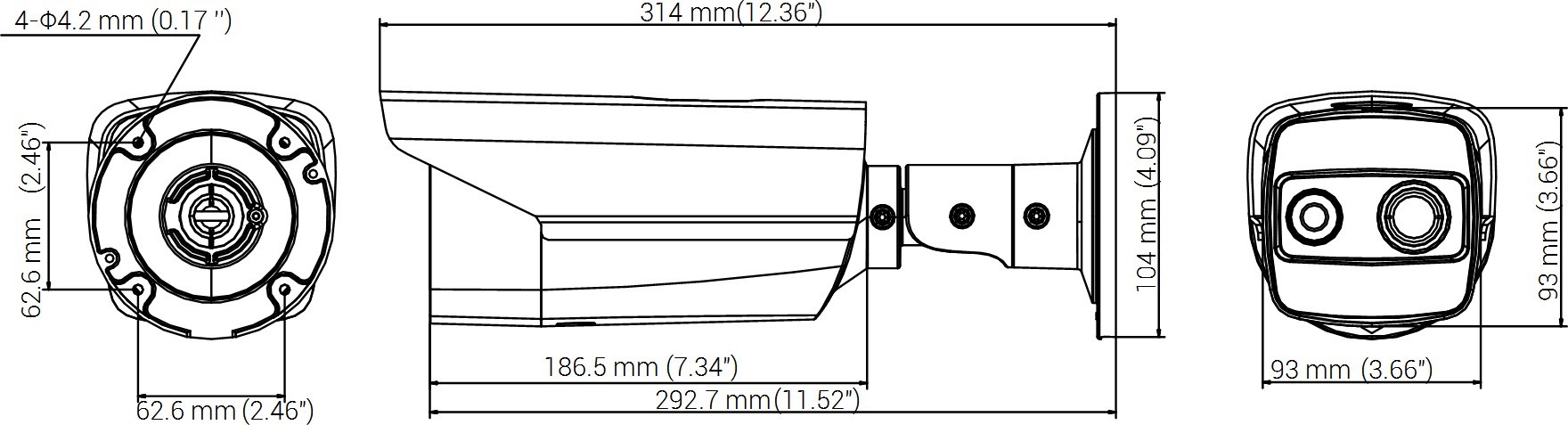

Dimensions
